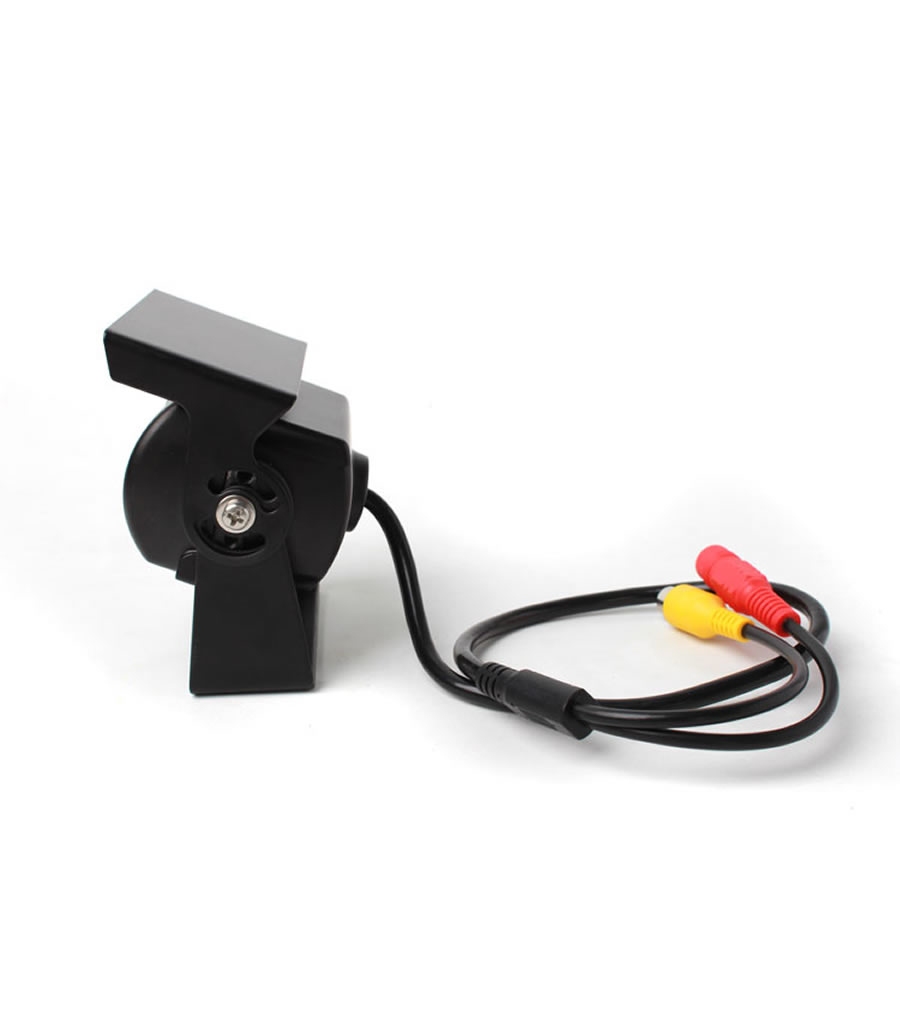

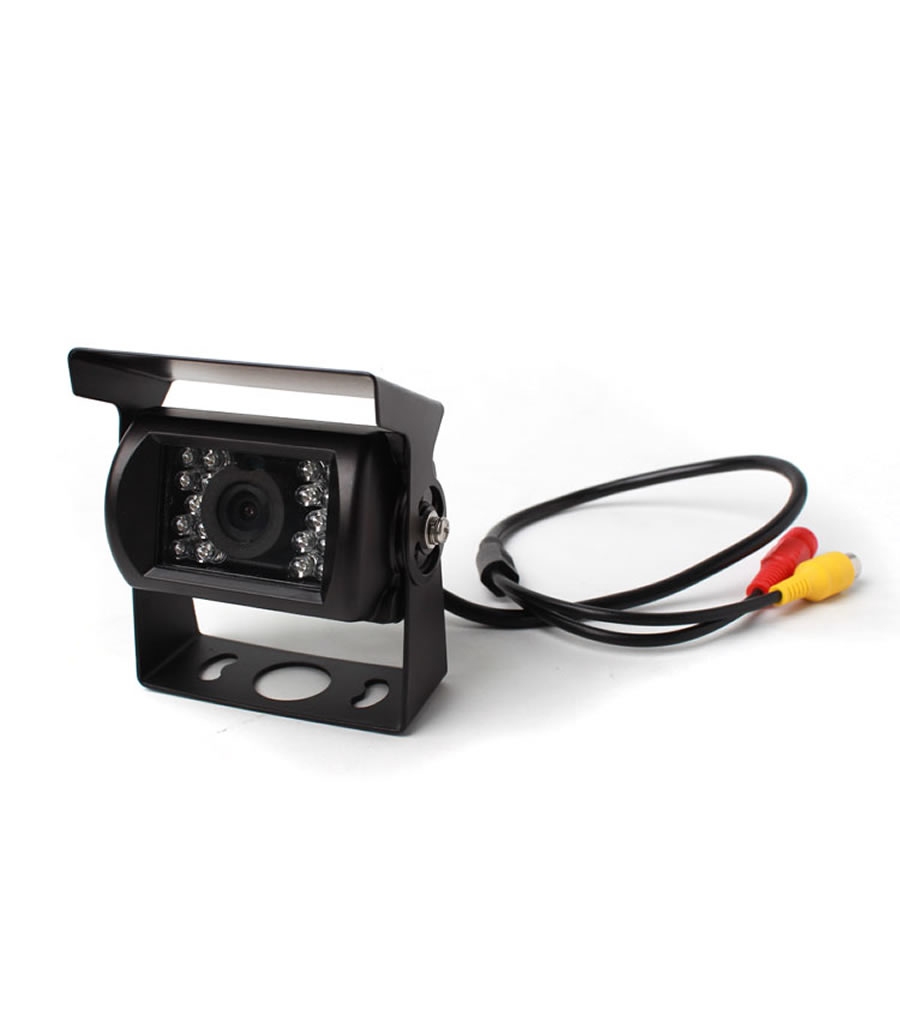

CAMERA CMOS WITH IR LED AND METAL HOLDER TSBCUNI-06 12-24V
without guide lines, view angle of 110°
Article code:
TSBCUNI-06
OEM:
Price with VAT:
69,89 €
Rearview camera universal 12V / 24V, without guide lines, view angle of 110° with automatic IR illumination, metal body.
Technical parameters:
- large 1/3 "Sensor
- illumination IR LED (18pcs)
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,05Lux
- S/N Ratio:> 48 db
- TV system: NTSC
- TV lines: 480
- weather protection: IP66
- viewing angle: 110°
- video Output: 1.0V / 75 ohm
- white balance: Auto
- operating temperature from -30 °C to + 70 °C
- RCA connectors
- power cable length: 1 m
- power supply 12V / 24V
- current consumption: 290 mA (+/- 5%)
- mirror image
- the camera body dimensions: 75x43x57 mm
