LED BULBS H1 KIT 360° CSP 4500lm 6500K
LED BULBS H1 KIT 360° CSP 4500lm 6500K
LED BULBS H1 KIT 360° CSP 4500lm 6500K
LED BULBS H1 KIT 360° CSP 4500lm 6500K

LED BULBS H1 KIT 360° CSP 4500lm 6500K

3D Led, 360° beam angle
Article code:
STTH1-CSP-H1
OEM:
Price with VAT:
91,50 €
ADD TO CART



You need advice? +386 31 028 128 or ljubljana@tehnoshop.net

Nudimo vgradnjo pri nas kupljenih izdelkov. Popust na storitev.We offer installation. Call us for an appointment.

Nudimo vgradnjo pri nas kupljenih izdelkov. Popust na storitev.Easy upgrade. Plug'n'play replacement.

Osram 4 leta garancije. Najboljša kvaliteta za najboljšo ceno.Cool white. Color temperature 6500K.

Osram 4 leta garancije. Najboljša kvaliteta za najboljšo ceno.Premium quality. 1 year warranty.

Osram 4 leta garancije. Najboljša kvaliteta za najboljšo ceno.CSP chips​. New generation CSP PRO.

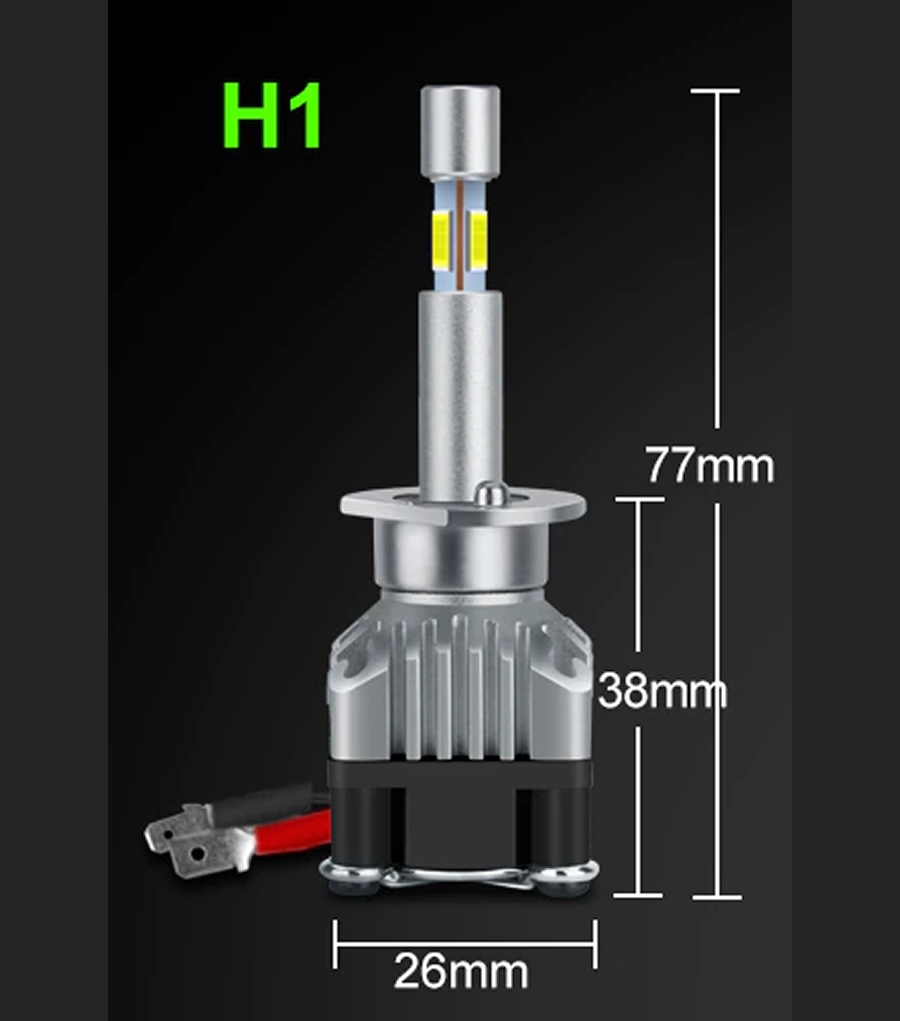

LED BULBS H1 KIT 360° CSP 4500lm 6500K
STTH1-CSP-H1


LED BULBS H1 KIT 360° CSP offers extremely intense luminosity, high-quality LEDs offer up to 4500LM of light. With a color temperature of 6500K and a very compact design, they provide an easy solution to upgrade car headlights with cool white LED light - it provides an elegant look as well as superior brightness.


LED BULBS H1 KIT 360° CSP 4500lm 6500K are only for long bulb!


LED BULBS H1 KIT 6500K - replacement for halogen lamp H1 (for long lamp)

  • Power: 30W (60W per pair)
  • Operating voltage: DC 9-32V
  • Luminance: 4500lm
  • Light color: white, 6500K
  • LED chips: CSP PRO
  • Beam angle: 360 °
  • Material: aluminum
  • Operating temperature: -40°C + 80°C
  • Lifespan:> 50,000 hours
  • Use: only for long bulb
  • Suitable for: all vehicles, motorcycles, ATVs, ...

The main advantages of LED BULBS H1 KIT 360°:

  • Small size
  • easy to install,
  • plug & play,
  • quick start
  • provides you with more safety and reaction time on the road,
  • CANBUS anti-blink driver and control for blown bulb1
  • full performance with CSP chips,

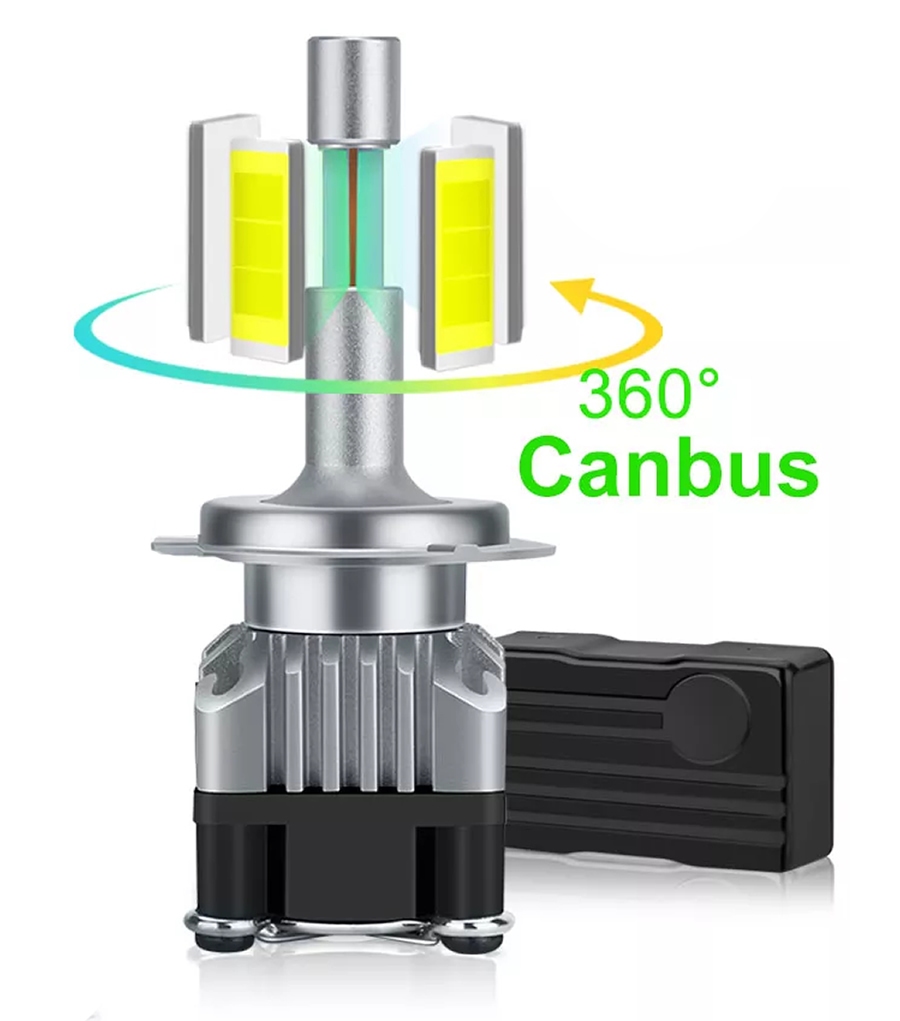

  • 360 ° beam for clear beam without blind area,
  • color 6500K white.



When replacing halogen bulbs with LED bulbs, it is best to set the headlight beam in a specialized workshop in addition to installation or replacement, as there is minimal deviation in the position of the filament of the classic bulb and LED lamp. If you do not adjust the headlights, the light beam will illuminate incorrectly, so you will not use the maximum power of the LED lamp and dangerously blind the oncoming vehicles.


1) NOTE: LED bulbs have very low power consumption, so vehicles that have a computer-controlled light bulb check may experience flickering, malfunction, or false warning about the bulb burnout despite a CanBus LED with a resistor installed. This usually prevents malfunctions on most vehicles, but not all. Despite the use of an LED bulb with CanBus, these vehicles still give false messages about lamp burnout. In this case, an additional intermediate resistor must be added to the bulb.

Warranty
1 year
Homologation ECE
no ECE homologation - not be used on public roads
LED chip:
4 x CSP PRO
Wattage
30W (60W per set)
Voltage
12/24V
Base
P14.5s
Current consumption
2.3A±0.2A
Lumens
4500lm
Lumens (real, measured)
1800lm (check Important before buying)
Pack Quantity
2 pieces (1 pair)
Color temperature
6500K
Type of lamp
H1
Life time
> 50000 hours

Manufacturers and various vendors of the customer mislead with incorrect technical data on LED bulbs. In particular, there are errors in luminance data (LM). In our online store, the technical data is also published according to the manufacturer's technical sheet.


Due to customer care, we checked technical data for LEDs and obtained the following results:

  • The LED lamp has SEOUL CSP Y19 chips that produce 175-200LM of luminance
  • for 6 LED chips, this means 1200LM (6 x 200LM)
  • for 8 LED chips, this means 1600LM (8 x 200LM)




The next step was the LED test set of the H7 kit, which we tested in Slovenia on a dedicated device (PDF document):
Meritev svetilnosti led sijalk retrofit h7 luxeon zes philips
