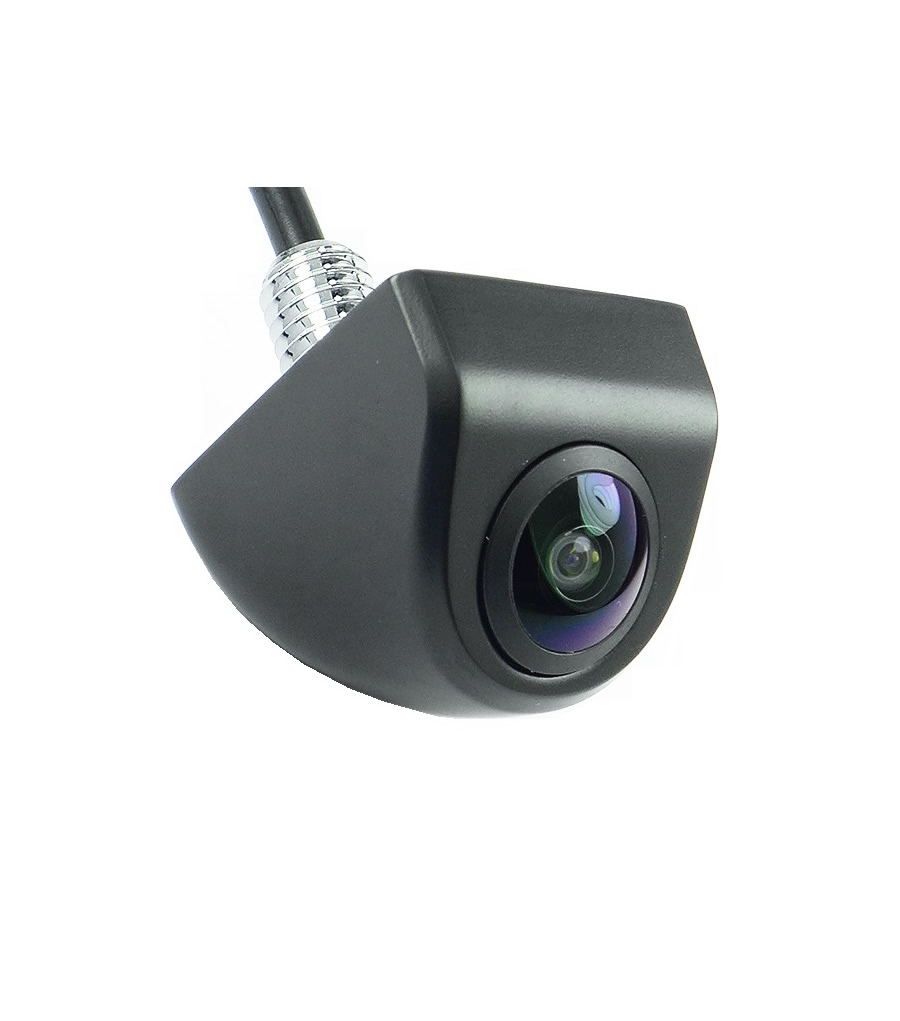

UNIVERZALNA KAMERA CMOS NIGHT VISION Z VIJAKOM TSBCUNI-10 12V

UNIVERZALNA KAMERA CMOS NIGHT VISION Z VIJAKOM
BC UNI-10 12V

Universal parking camera with 155° view angle for horizontal or vertical installation, the option to turn on/off the guide lines, mirror image, installation in a hole of 8 mm.


Technical parameters:

• 1/4" CMOS sensor
• view angle: 155°
• resolution: 800 TV lines
• minimum illumination: 0.01Lux
• TV system: NTSC
• current consumption: 25-55 mA
• effective points: 960x480
• power supply 9V-12V
• weather protection: IP69K
• video output: 1.0V / 75 Ohm
• working temperature from -40 °C to +75 °C
• camera dimensions: 29x25x22 mm
• signal cable length 8m terminated with CINCH connectors

Image orientation (to change by cutting the color loop)

• GREEN loop  - Guide lines
• BLUE loop    - Right / Left flip (mirror image)
• WHITE loop  - Horizontal / Vertical flip

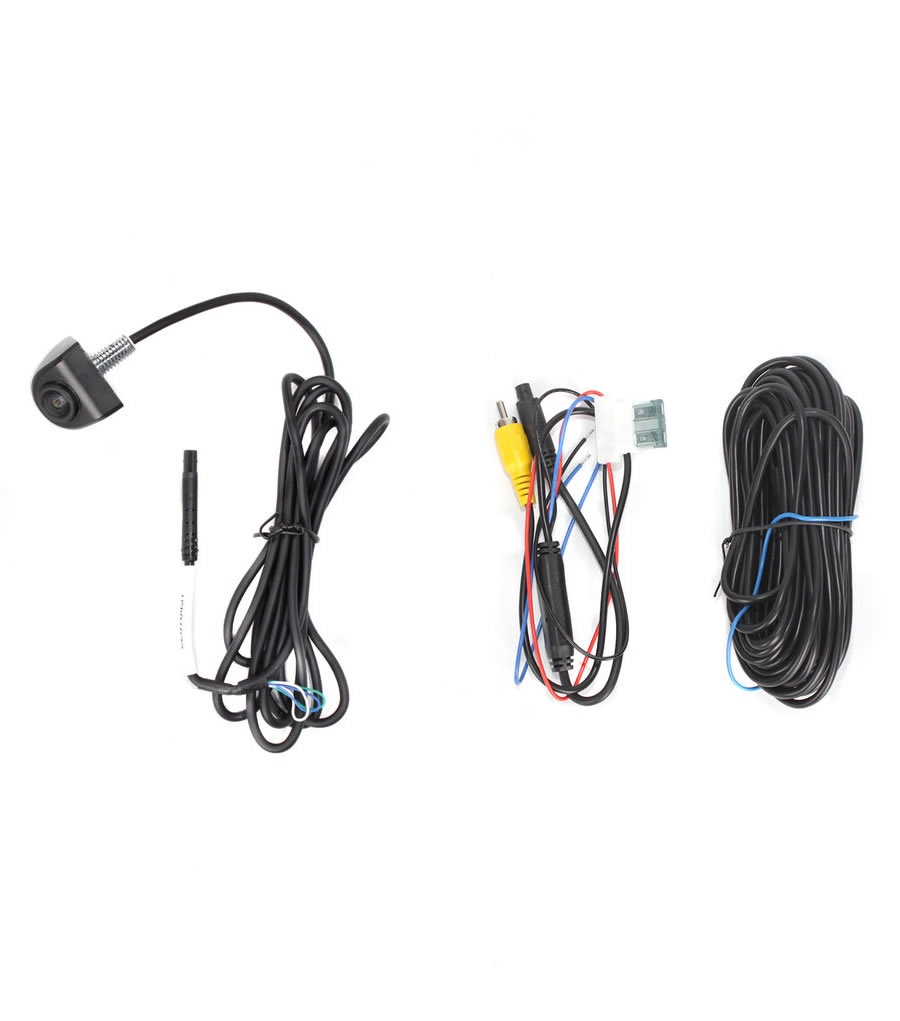

Included:

• video camera
• cable 8m + reduction 30cm
