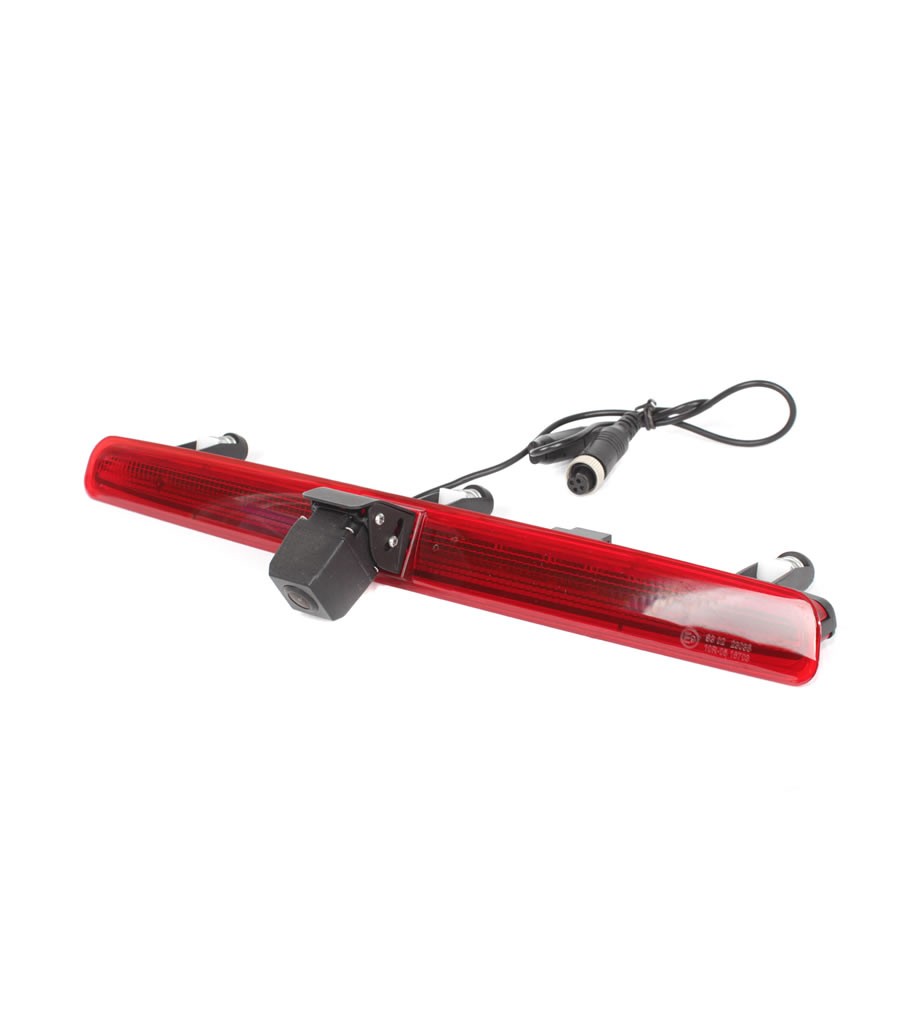

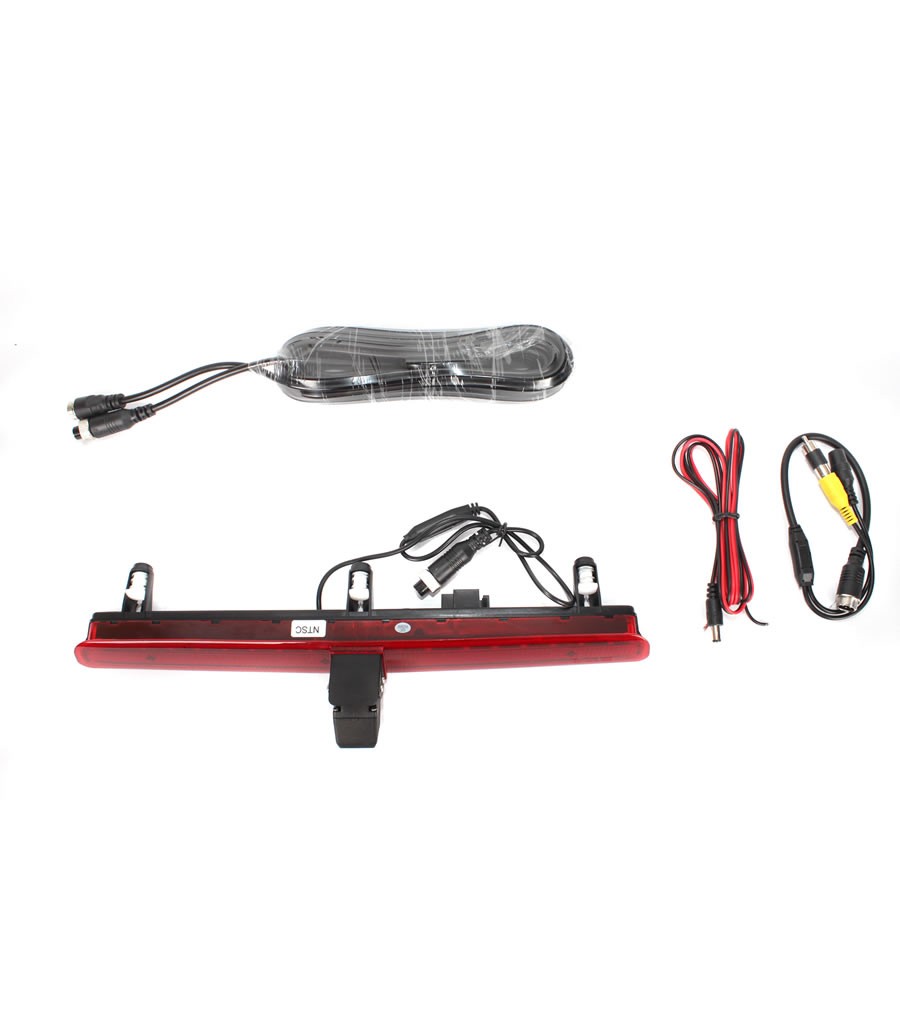

KAMERA CCD VW TRANSPORTER T5 TRETJA ZAVORNA LUČ

OEM rearview camera for VW Transporter T5 (03-15) with lift door.


Suitable for cars:

• VW Transporter T5 (03-15) with lift door only

Technical parameters:

• Sharp CCD 1/4 "sensor chip
• IR LEDs
• 14 mm diameter lens
• electronic shutter: 1/50 1/10000 sec.
• minimum illumination: 0,1Lux
• signal / noise ratio:> 48 db
• TV system: NTSC
• the number of TV lines: 420
• protection: IP68
• view angle: 170°
• video Output: 1.0V / 75Ohm
• white balance: auto
• working temperature from -30 °C to + 70 °C
• power and signal cable for the camera: cca.80cm
• signal cable length 10m terminated with RCA connectors (CINCH)
• power cable length 1 m

Camera dimensions:

• base 33 x 340 mm
