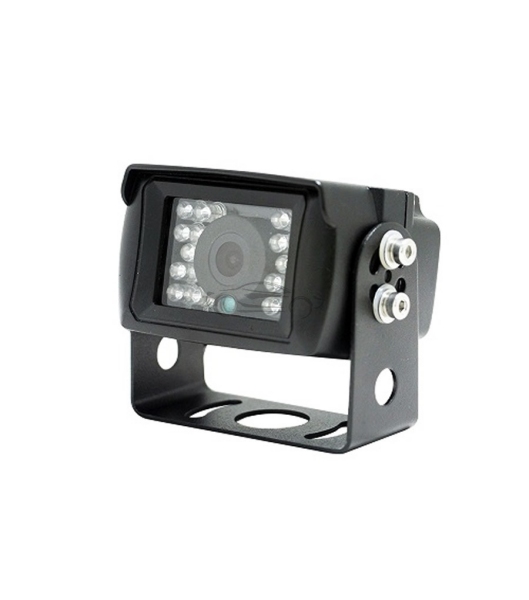

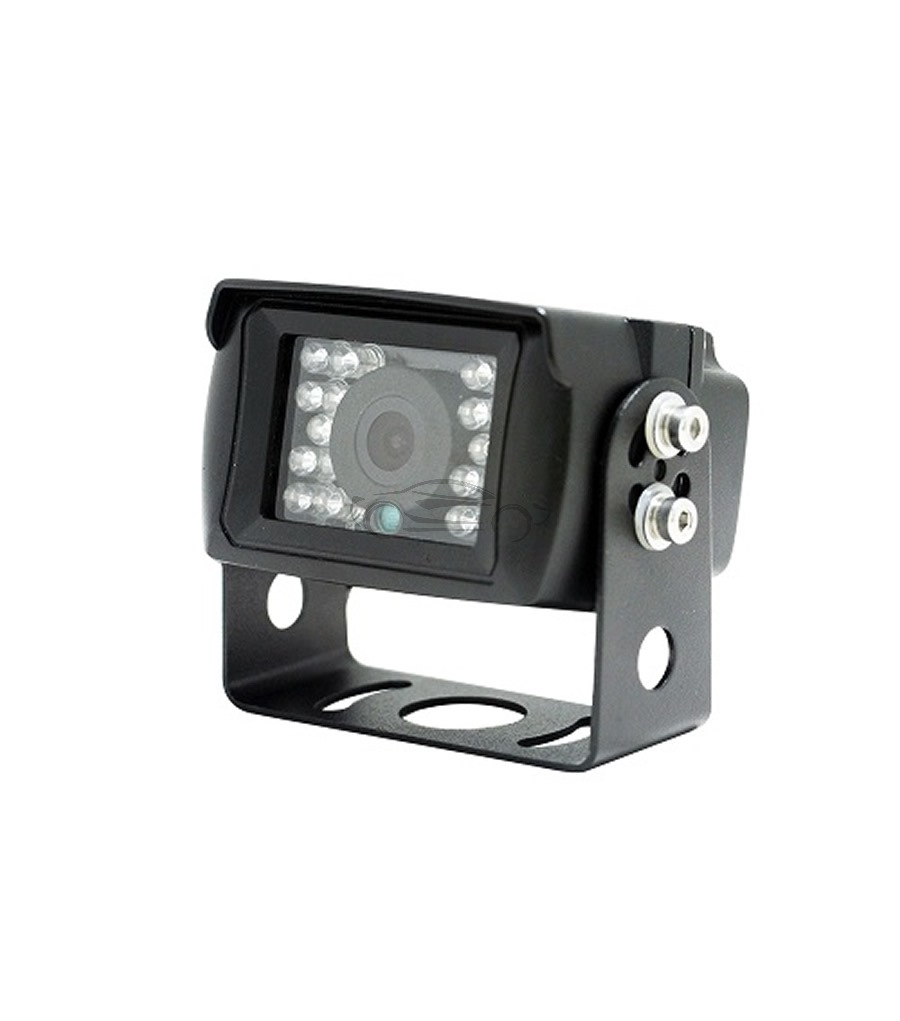

UNIVERZALNA KAMERA ZA PARKIRANJE SHARP CCD Z AUTO IR LED OSVETLITVIJO IN NOSILCEM TSCAM1 12/24V

UNIVERZALNA KAMERA ZA PARKIRANJE SHARP CCD
Z AUTO IR LED OSVETLITVIJO IN NOSILCEM
CAM1 12/24V

Camera for vehicles analogue, with auto IR, to display on analogue or AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as front or rear, or into cargo area, because of the metal body and vibration resistance determined to use even under heavy conditions, the image orientation setting is performed on the monitor,  12V/24V, e-mark.


Features

• Sharp CCD 1/4"
• 600TVL resolution
• automatic illumination, 18 x IR LED
• view angle: 120°
• NTSC TV system
• water resistance: IP69K
• shock resistance min. 4G
• image orientation: mirror image

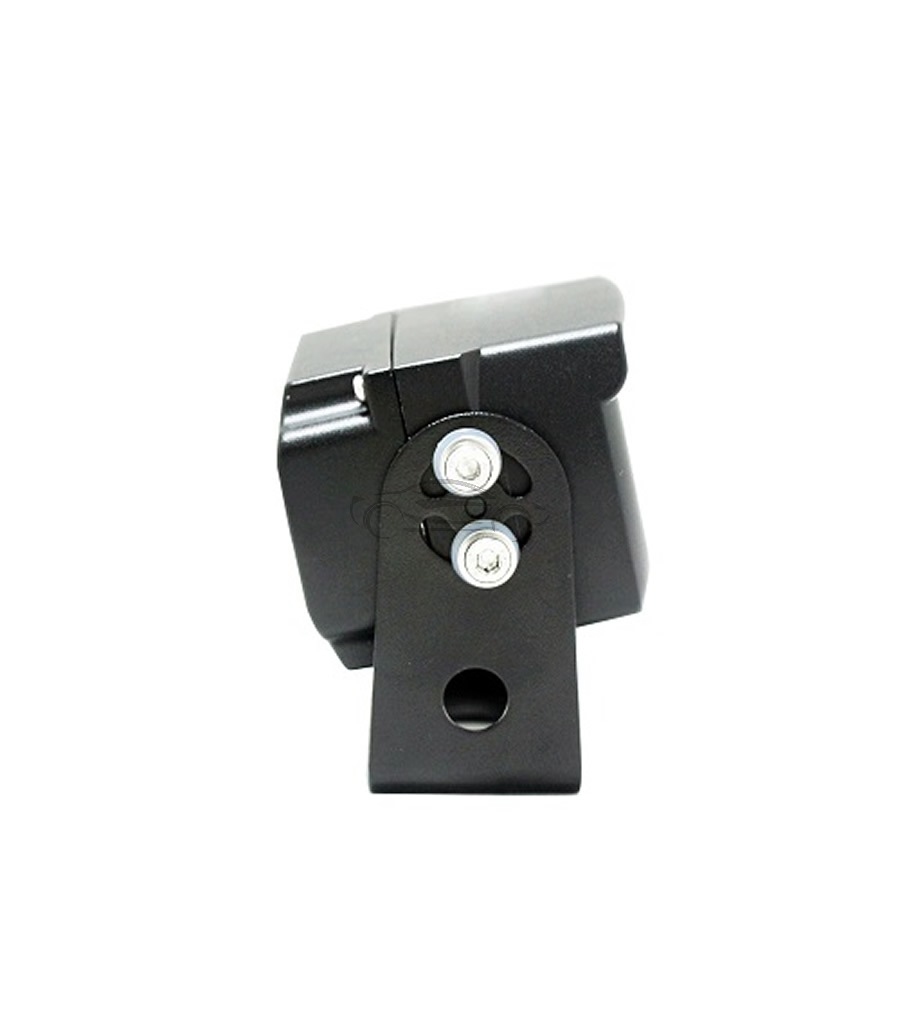

• possibility of tilting the camera during assembly

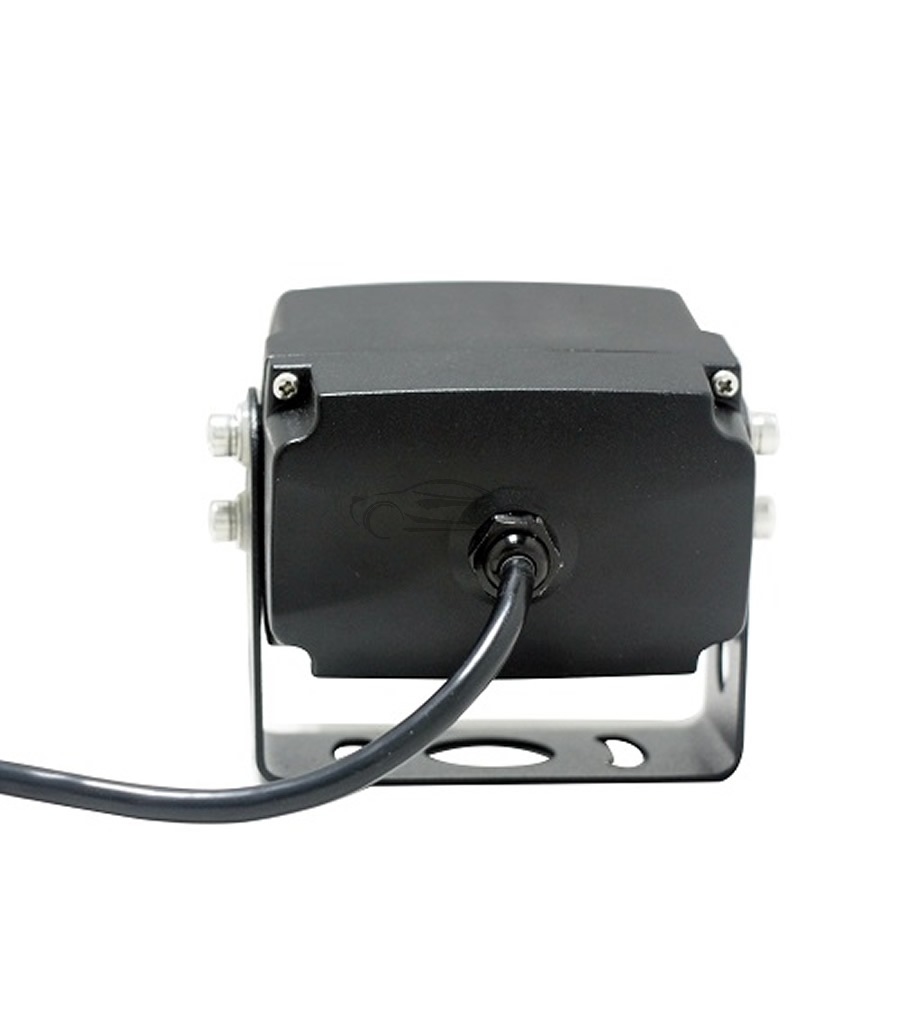

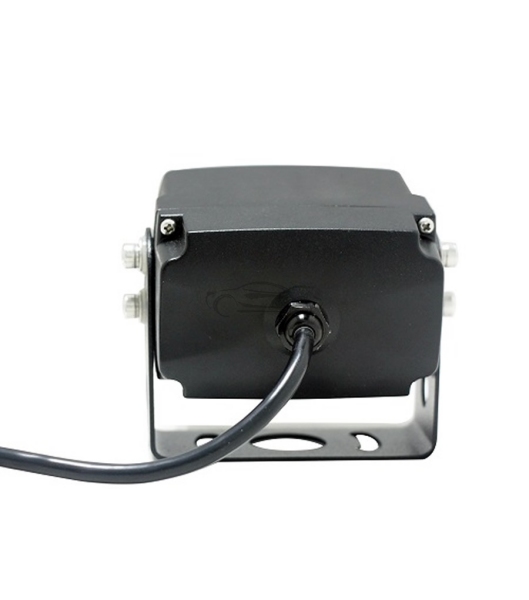

• 0.5m cable terminated with a 4PIN M12 screw connector
• power supply DC 12V/24V
• metal camera body
• microphone: No.
• power consumption: <3W
• working temperature from -20 to +70 °C
• dimensions: 71 x 45 x 52 mm (without shield and stand)
• e-mark

Package contents: camera with U holder, Allen key, double-sided 3M tape

Note. The analog camera is designed for display on an analog or AHD monitor as well.
