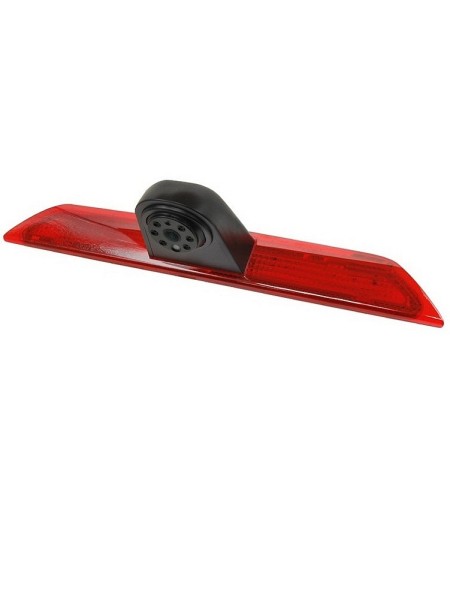

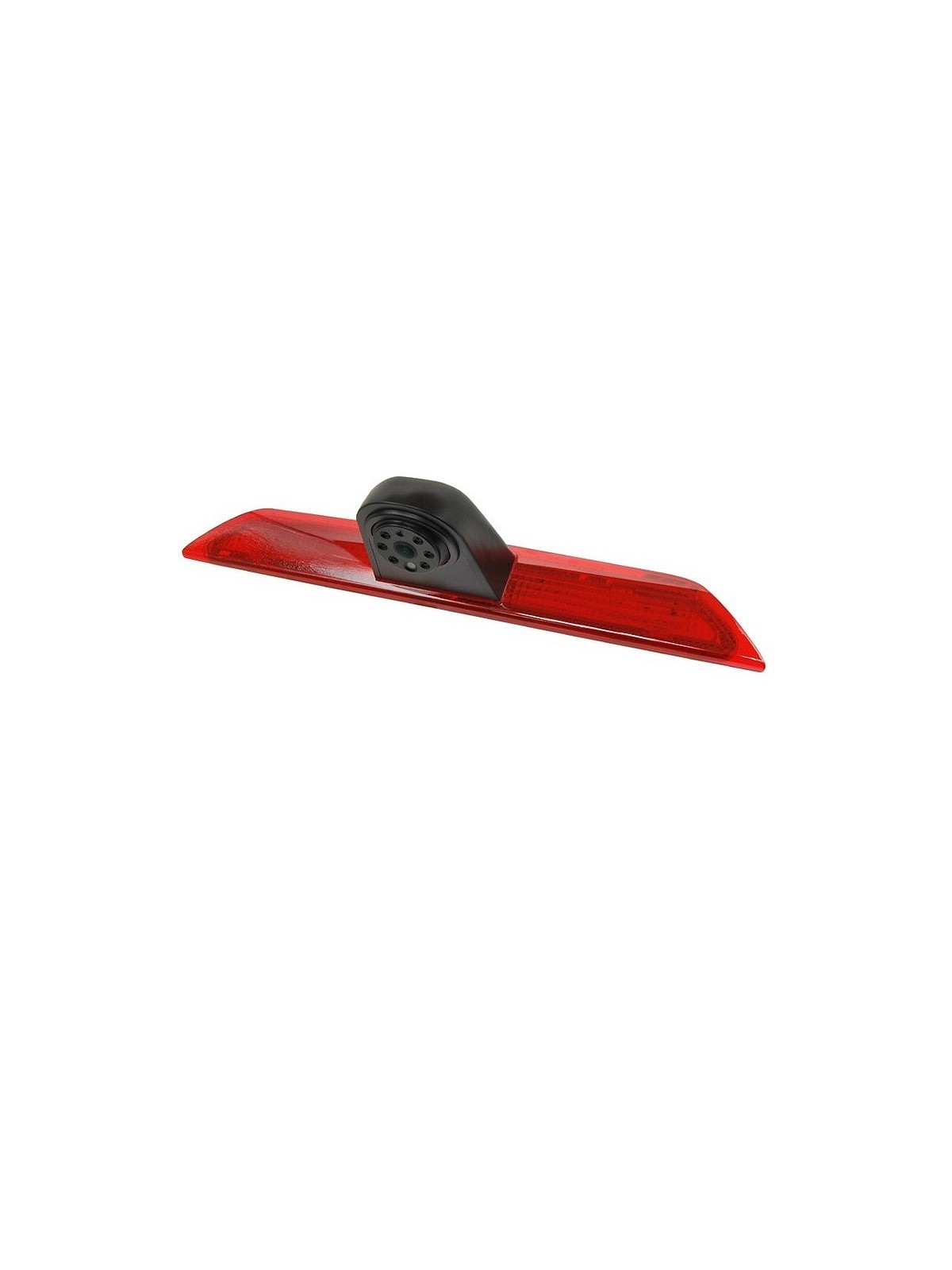

KAMERA CCD FORD TRANSIT (2014-) TSBCFORD-07 OEM TRETJA ZAVORNA LUČ

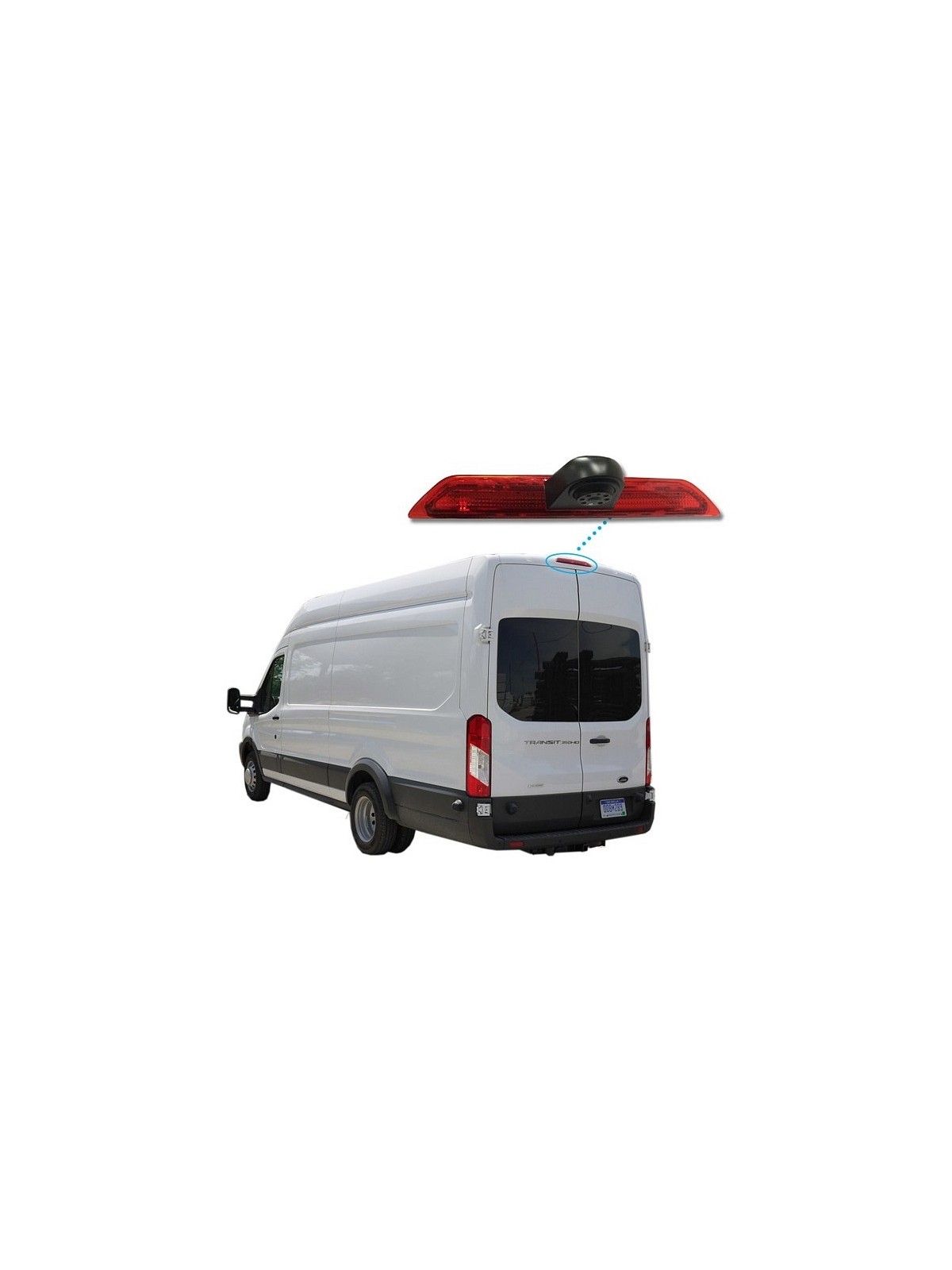

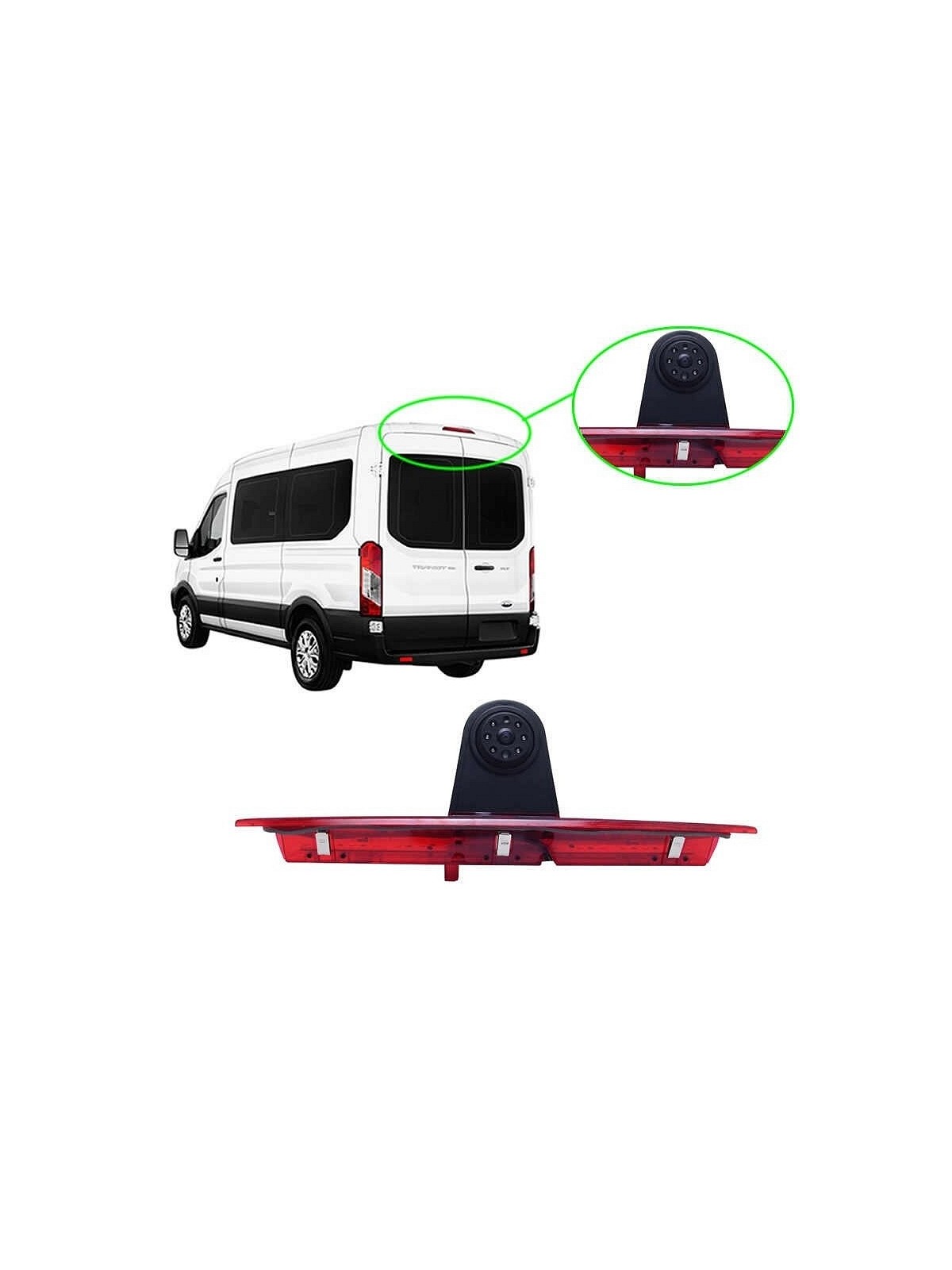

CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Ford vans.

Suitable for cars:

• FORD Transit (2014->)

Technical parameters:

• Sharp CCD 1/4 "sensor chip
• IR LEDs (6 pieces)
• 14 mm diameter lens
• electronic shutter: 1/50 1/10000 sec.
• minimum illumination: 0,1Lux
• signal / noise ratio:> 48 db
• TV system: NTSC
• the number of TV lines: 420
• protection: IP68
• scanning angle: 170°
• video Output: 1.0V / 75Ohm
• white balance: auto
• working temperature from -30 °C to + 70 °C
• power and signal cable for the camera: cca.80cm
• signal cable length 10 m terminated RCA connectors (CINCH)
• power cable length 1 m

Camera dimensions:

• base 50 x 386 mm
• depth of base 30 mm
